Adjustable Deck Pedestals
The Bison Bison Ultra Low Height pedestal deck supports are ideal for minimal cavity heights. The VT18 and VT316 can provide 1/8″ (3.2 mm) of elevation to achieve a level deck surface over virtually any terrain. The Ultra Low Height Deck Support is
The VT18 and VT316 deck supports are rated to 1250 pounds (567 kg) FoS:3 per Pedestal. Use the VT18 and VT316 alone or in conjunction with the Bison Adjustable Pedestals.
Bison’s low-profile deck supports are made of high-density copolymer polypropylene, containing 20% post-industrial recycled material and are impervious to water, mold, and freezing or thawing.

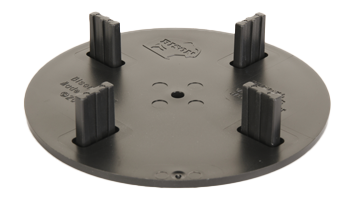

Model: VT18
Ultra Low Height Pedestal with 1/8″ (3.2 mm) Tabs
Model: VT316
Ultra Low Height Pedestal with 3/16″ (4.5 mm) Tabs
Ultra Low Height Pedestal Deck Support | VT18 or VT316 | |
|---|---|
Height | 1/8″ (3.2 mm) |
Base Diameter | 4-3/4″ (121 mm) |
Weight | 0.098 lbs (0.044 kg) |
Weight Bearing Capacity | Maximum 1250 lbs (567 kg) FoS:3 per Pedestal |
BISON LEVEL.IT™ ADJUSTABLE PEDESTAL RESOURCES | |||
|---|---|---|---|
Document | Download | View Online | Publication Date |
Level.It Cut Sheet | Download | View Online | August 2023 |
Level.It Installation Instructions | Download | View Online | August 2023 |
Level.It Specification (PDF) | Download | View Online | August 2023 |
Level.It Specification (MS Doc) | Download | View Online | August 2023 |
